Industrial Leaves Food Dryer Machine Pharmaceutical Drying Equipment
Quick Details
| Model Number: | KS-F15, KSF-100 | Type: | Dryer | Voltage: | 380V |
| Power(W): | 15-100(kw) | Weight: | 1600-6000(kg) | Dimension(L*W*H): | 7.0x1.1x1.8-15x1.1x1.8(m) |
| Certification: | CE ISO SGS | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
| Capacity: | Excellent | Price: | Competitive | Color: | AS YOU LIKE |
Specifications
Microwave Food Dryer for Food Drying
1. Industrial stainless steel
2. For fruit and vegetable, meet
3. By PLC.
Brief Description of Microwave Tunnel Dryer:
Microwave tunnel dryer is such a dryer which is used of microwave to reduce the raw material.
Unlike other external heating drying, microwave tunnel dryer can dry the raw material from
nternal and external at the same time. Using this method, microwave tunnel dryer can save drying
time and avoid the raw material becoming metamorphism or coking at the overheat environment. The drying effect is very good, especially for the heat sensitive food.
The Working Principles of Microwave Tunnel Dryer:

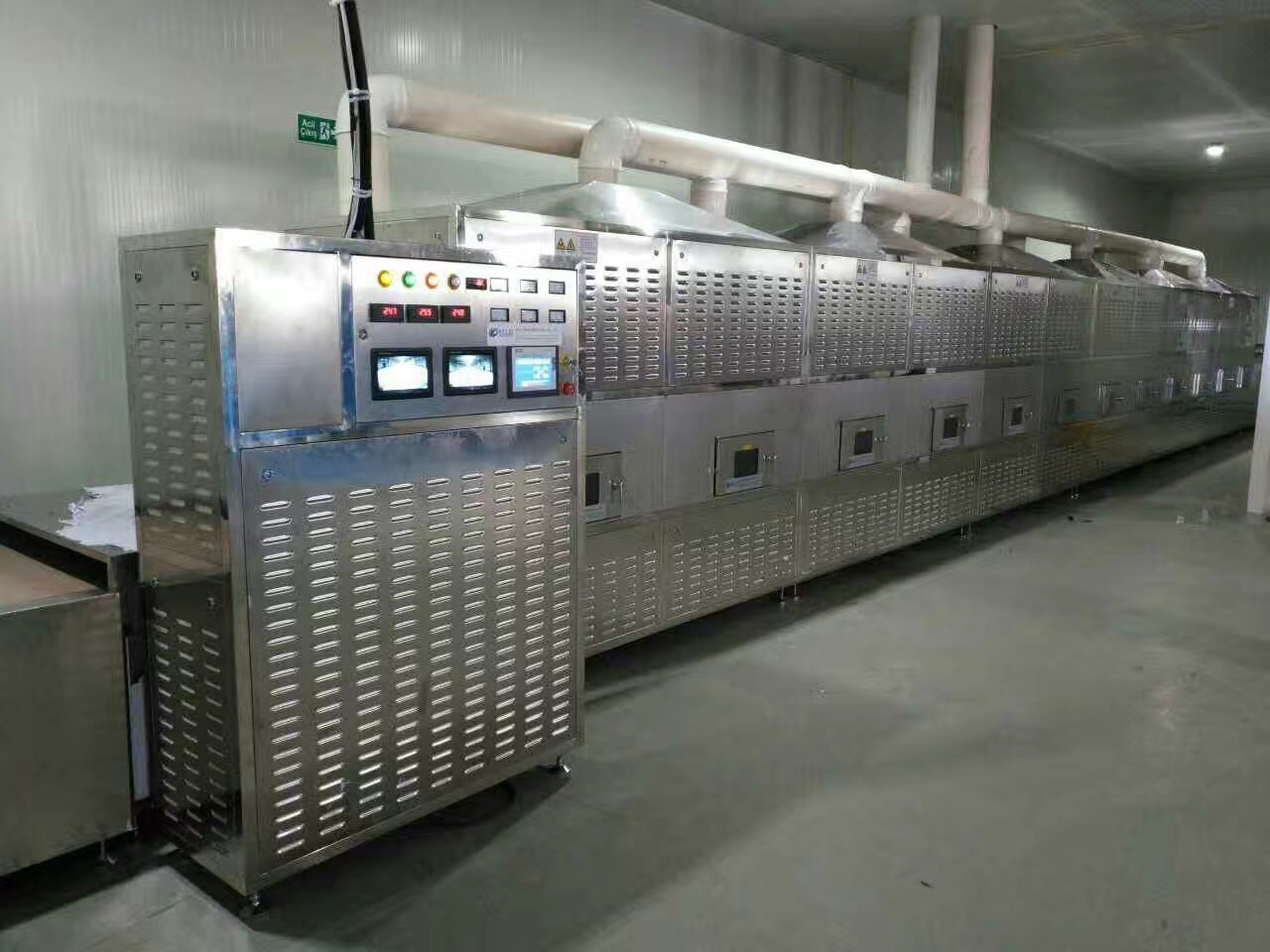

Microwave tunnel dryer
fits for application of microwave in scope of packaged food, bottled food, local products, cooked food, spices, dried beef, duck, chicken, fish products etc. Microwave does function on sterilization and preservation to keep its flesh, flavor and tenderness.
Application field: Food industry
Applicable materials: Nuts, fruits, vegetables, flowers, teas, meats, grains, soy products, sea foods, flours, jams, seasoning/condiments, confectioneries, dairy products, snack foods, pastries, additives, soy proteins, encapsulated foods, pig skin, fish maw etc.
Technical Parameters
|
Model | Working Frequency
(MHZ) | Output power
(kw) | Microwave leakage
(MW/cm2)
| External ]Dimension] (m) | Installation ]Area] (m) | Gross ]Weight
(Kg) | Output of ]Drying
(kg/h) | Output of ]Sterilization
(kg/h) |
| KSF-15 | 2450 | 15 | ≤3 | 7.0x1.1x1.8 | 9.0x3.5x2.5 | 1600 | 40-60 | 150-165 |
| KSF-100 | 2450 | 20 | ≤3 | 8.0x1.1x1.8 | 10x3.5x2.5 | 2000 | 50-120 | 200-250 |
| KS-P30 | 2450 | 30 | ≤3 | 9.0x1.1x1.8 | 11x3.5x2.5 | 2400 | 65-160 | 300-400 |
| KSP-40 | 2450 | 40 | ≤3 | 10x1.1x1.8 | 12x3.5x2.5 | 2800 | 100-240 | 400-500 |
| KSP-50 | 2450 | 50 | ≤3 | 11x1.1x1.8 | 12x3.5x2.5 | 3200 | 120-300 | 500-600 |
| Working power: 380V, 50Hz;
The above specifications for reference only, some will be changed according to your customized demand. |
Our services
Installation:
1. We provide videos and instruction manual to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send technician to buyer's factory to install the machine and provide training service.
After Sales Service:
1. One year quality warranty and free lifetime technique support.
2. Free spare parts would be supplied if machine broken within warranty period except the easily damaged
parts.
3. After the warranty period, the spare parts for replacement are offered based on certain charge.
